2-Wire Transmitter

**2-Wire Transmitter**

	2-Wire Programmable Transmitter SC23 Space Saving 12.5 mm. Width 1 Input, 1 Output Programmable Input Output 2 Wire 4-20 mA (Loop Power) Isolated Input/Output and Power Supply
	2-Wire Programmable Transmitter SC24 2 Input, 2 Output Programmable Input Output 2 Wire 4-20 mA (Loop Power) Isolated Input/Output and Power Supply
	2-Wire Programmable Transmitter SC25 Space Saving 12.5 mm. Width 1 Input, 2 Output Programmable Input Output 2 Wire 4-20 mA (Loop Power) Isolated Input/Output and Power Supply
	Temperature Transmitter TR37 High Accuracy Temperature ± 0.1 °C Temperature Range 0 - 100 °C Output 2 Wire 4-20 mA (Loop Power)
	Humidity Transmitter HR370 Precision Relative Humidity ± 3 % RH Humidity Range 0 - 100 % RH Output 2 Wire 4 - 20 mA (Loop Powered)
	RTD Transmitter (PT100) RT37 Input RTD PT100 Output 2 Wire 4-20 mA (Loop Power) Isolated input to output
	Thermocouple Transmitter TT37 Input Thermocouple J, K, S, R, T Output 2 Wire 4-20 mA (Loop Power) Isolated input to output
	Potentiometer Transmitter PT37 Input Potentionmeter 100 Ω to 50 KΩ Output 2 Wire 4-20 mA (Loop Power) Isolated input to output
	Current Transmitter CT37 Input 0 - 1, 0 - 5, 0 - 10 Aac Output 2 Wire 4-20 mA (Loop Power) Isolated Input to Output
	Signal Converter SC37 Input 10 mVDC to 100 VDC, 100 µADC to 100 mADC Output 2 Wire 4-20 mA (Loop Power) Isolated input to output
	P/I Signal Converter PC37 Input 0.2 to 1 Bar, 3 to 15 PSI Output 2 Wire 4-20 mA (Loop Power) Isolated input to output
	Differential Pressure DT20 Input Pressure 5 inch W.G. to 1 Bar Output 2 Wire 4-20 mA (Loop Powered) Suitable for Air and Water
	Pressure Transmitter DT21 Piezoresistive silicon chip employed Resolution Perfect long term stability MEMS technology
	Level Transmitter LT20 วัดระดับของเหลว Output 4-20 mA Easy Install
	Humidity & Temperature Transmitter HT120 Precision Relative Humidity ± 3 % RH High Accuracy Temperature ± 0.4 °C Output 2 Wire 4-20 mA (Loop Powered)

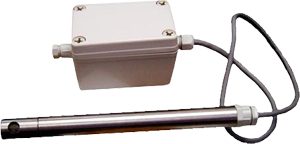

	Humidity & Temperature Transmitter HT130 Working Range (-)40 to 125 °C Precision Relative Humidity ± 3 % RH High Accuracy Temperature ± 0.4 °C Output 2 Wire 4-20 mA (Loop Powered)
	Current Loop Supply (2 channels distributer) CS295 Power supply for 2 wire transmitter Supplies 2 Current Loops Isolation between each Current Loop and power supply Current limiting (short circuit protected)
	Current Loop Supply (Isolated distributer) CS195 Power 2 Wire Transmitter Output 4-20 mA, 1-5 VDC, 0-10 VDC Isolated between input, output and supply
	Current Loop Supply (Isolated 2 Output) CS198 Power 2 Wire Transmitter 2 Channels Output 4-20 mA, 1-5 VDC, 0-10 VDC Isolated between input, output and supply

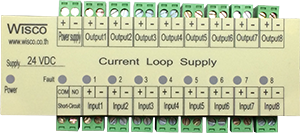

	Current Loop Supply CS20 Power Supply for 2-wire Transmitter Supplies 8 Current Loops Current Limiting Short Circuit Protected (Relay Alarm)
	Signal Isolater SI99 Intrinsically safe isolation without power supply Eliminating ground-loop 2 channels available High accuracy and stability

**4-Wire Transmitter**

	Universal Signal Conditioner SC20 Programmable Input mV, V, mA , Thermocouple, RTD Output 4-20 mA, 0-10 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Thermocouple Transmitter TT95 Input Thermocouple J, K, S, R, T Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	RTD Transmitter RT95 RTD Transmitter Input RTD PT100 Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Potentiometer Transmitter PT95 Input Potentionmeter Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Signal converter SC95 Input 10 mV-100 VDC, 0-20 mA, 4-20 mA Output 4-20 mA, 0-20 mA, 0-1 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC Isolated Input, Output and Power Supply
	Frequency Transmitter FT20 Input Frequency 25 Hz 20 KHz Output 4-20 mA, 0-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC Isolated Input, Output and Power Supply
	Weight Transmitter WT95 Input from Load Cell or Strain Guage Sensor Output 4-20 mA, 0-10 VDC, 1-5 VDC Adjustable Span and Tare
	Remote Setpoint RS95 Up - Dow Vary Setpoint Output 4-20 mA, 0-10 VDC, 0-5 VDC
	Digital Remote Setpoint RS20 Manual Adjust Output 4 to 20 mA, 0 to 10 VDC, 1 to 5 VDC Programmable Display
	Totalizer TL95 Convert Flow Rate to Totalizer Input 4-20 mA, 0-10 VDC, 1-5 VDC Output Frequency 25-51200 Count/Hour
	Square Root Transmitter ST20 Squared Input To Convert Diff Pressure to Flow Rate Input, Output 4-20 mA Isolated
	Peak-Hold Signal Conditioner SC21 Hold Maximum Value Signal 4-20 mA, 0-10 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	High Selector HS95 Accept Two Input Signal Higher Selector DC Current 4 - 20 mA

**4-Wire Transmitter (2 Outputs)**

	Universal Signal Conditioner SC22 Programmable Input mA, mV, VDC, Thermocouple, RTD Two Isolated Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Thermocouple Transmitter TT98 Input Thermocouple K, J, L, R, S, T Two Isolated Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	RTD Transmitter RT98 Input RTD PT100 Two Isolated Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Potentiometer Transmitter PT98 Input Potentionmeter 100 Ω to 50 KΩ Two Isolated Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Signal converter SC98 Input 10 mVDC to 100 VDC, 4-20 mA, 0-20 mA, 0-10 VDC, 1-5 VDC Two Isolated Output 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply
	Signal Converter 2 Channels SC99 Input 10 mVDC to 100 VDC, 4-20 mA, 0-20 mA, 0-10 VDC, 1-5 VDC Two Channels input-output separated 4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC Isolated Input, Output and Power Supply

**Power Transducer**

	Voltage Transducer VT95 Voltage Input 0-150 VAC, 0-300 VAC Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC
	Voltage Transducer (3 phase) VT195 Input 3 Phase, 0-150 VAC,0-300 VAC Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC
	Current Transducer CT95 Current Input 0-1 Aac, 0-5 Aac Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC
	Current Transducer (3 phase) CT195 Current Input 0-1 Aac, 0-5 Aac Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC
	Watt Transducer WAT95 High accuracy Long term stability Time - Division Multiplication principle
	Var Transducer VAR95 Voltage Input 110 VAC, 220 VAC, 380 VAC Current Input 1 A, 5 A Analog Output 4-20 mA, 0-5 VDC
	Frequency Transducer FQ95 Voltage Input 110 VAC, 220 VAC Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC


	Current Transformer CT Rate Voltage: 660 VAC Output Capacity: 5 VA Max. Accuracy Class: 0.5
