SC24: 2-Wire Programmable Transmitter

- 2 Input, 2 Output

- Programmable Input

- Isolated Input/Output and Power Supply

- 2-Wire Transmitter Output 4 - 20 mA

- High Accuracy 16 Bits ADC.

- Space Saving

- Easy to Install

- Din Rail Mounting

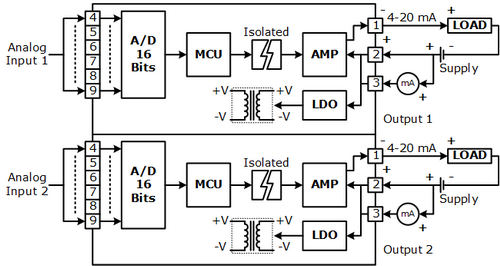

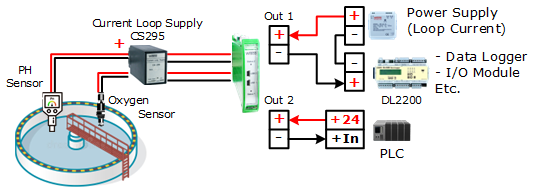

            2-Wire Programmable Transmitter SC24 เป็นอุปกรณ์แปลงสัญญาณ Thermocouple, RTD, Ohm, V, mV, mA เป็นสัญญาณ 4 - 20 mA 2-Wire Transmitter โดย Input และ Output Isolate จากกัน

Specifications

Config Port

Connector:

USB Type Mini-A (Female)

Analog Input

Number of Channel:

2 Channels

ADC Resolution:

16 Bits

Input Type:

Programmable Input

Input Range:

Thermocouple: R, S, K, E, J, T, B

RTD: Cu10, PT100, PT1000

Resistance: 0 to 600 Ω, 0 to 1.2 KΩ, 0 to 4 KΩ

Voltage (mVDC): 0 to 80, 0 to 150

Voltage (VDC): 0 to 1, 0 to 5, 0 to 10, 0 to 15, 0 to 30

Current (mA): 4 to 20, 0 to 20, 0 to 40

Analog Output

Number of Channel:

2 Channel

Output Type:

Current (2-Wire)

Output Range:

4 To 20 mA

Loop Power:

15 to 35 VDC

Output Load Resistance:

Rload = (Vsupply - 15)/0.02

Isolation Voltage:

500 VAC, Between Input Output and Power Supply

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W20 X H100 X D118 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 year
Ordering
Ordering Information:
Example SC24
Packagelist

Package Checklist

1. SC24

2. Cable Config

Downloads
Datasheet:
application/pdf iconSC24 Specification.pdf
Manual:
application/pdf iconSC24 Utility Manual V1.0.1.pdf
Driver:
Cable Driver
Software:
SC2x Utility Setup V1.0.1
