TT98: Thermocouple Transmitter

- Programmable range

- Linearized output standard signal

- 2 Isolated outputs

- Isolation of input, output and power supply

- Cold junction compensation

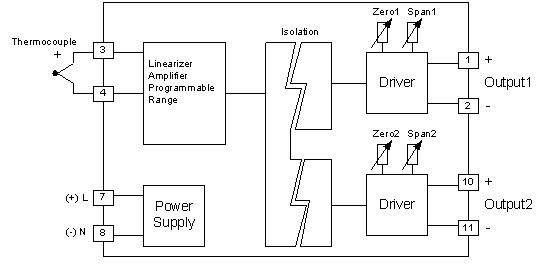

            Thermocouple Transmitter TT98 The thermocouple’s signal is linearized and cold – junction compensated to provide an isolated and linearized DC. voltage or current output. Typically the TT 98 interfaces with recording, monitoring or controlling instruments.

Specifications

Thermocouple Input

Number of channel:

1 Channel

Input type:

Thermocouple

Input range:

Type J 0 to 800 °C

Type K 0 to 1200 °C

Type R 0 to 1700 °C

Type S 0 to 1700 °C

Type T (-)200 to 200 °C

Cold junction compensation:

0 to 50 °C

Burn out thermocouple:

Upscale drive standard

Analog Output

Number of channel:

2 Channels

Output type:

Current, Voltage

Output range:

Current (0 to 20, 4 to 20 mA)

Voltage (0 to 1, 0 to 5, 1 to 5 VDC)

Linearity:

< ± 0.2% of span

Output Load Resistance:

Current (max. 1000 Ω load)

Voltage (min 1000 Ω load)

Isolation voltage:

500 VAC (1 min.) between input, output, power supply

Power Requirements

Power Supply:

100, 110, 220 VAC

24 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Connection:

Plug-in 11 pins socket

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify thermocouple type, input range, output1,output2, power supply
Example TT98/K/0-400 C/4-20 mA/1-5 VDC/220 VAC



Packagelist

Package Checklist

1. TT98
