CT195: Current Transducer (3 phase)

- Current Input 0-1 Aac, 0-5 Aac

- Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC

Current Transducer CT195 is designed for converting 3 phase sinusoidal alternating current into a load independent DC output signal proportional to the measured RMS. input values.

Specifications

Input
Number of Channel:	3 Channels
Input Type:	Current (3 Phase)
Input Range:	0 to 1, 0 to 5 Aac
	(Overrange 120% Continuously,200% for 10 sec)
Input Loss:	1 VA Max.

Analog Output
Number of Channel:	3 Channels
Output Type:	Current, Voltage
Output Range:	Current Max 0 to 1 mA (Load Resistance 10 KΩ)
	Current Max 0 to 5 mA (Load Resistance 2 KΩ)
	Current Max 0 to 10 mA (Load Resistance 1 KΩ)
	Current Max 0 to 20 mA (Load Resistance 600 Ω)
	Current Max 4 to 20 mA (Load Resistance 600 Ω)
	Voltage Min 0 to 10 mVDC (Load Resistance 500 Ω)
	Voltage Min 0 to 100 mVDC (Load Resistance 500 Ω)
	Voltage Min 0 to 1 VDC (Load Resistance 500 Ω)
	Voltage Min 0 to 5 VDC (Load Resistance 1 KΩ)
	Voltage Min 1 to 5 VDC (Load Resistance 1 KΩ)
	Voltage Min 0 to 10 VDC (Load Resistance 2 KΩ)
Linearity:	± 0.5 % of span

Power Requirements
Power Supply:	110, 220 VAC

Environmental Limits
Operating Temperature:	0 to 55 °C
Operating Humidity:	5 to 95 %RH
Storage Temperature:	0 to 70 °C

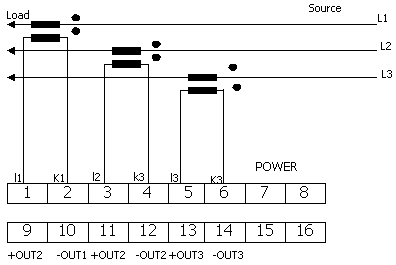

Physical Characteristics
Dimension:	W132 x H132 x D162 mm.
Mounting:	Wall Mount
Wiring:	Screw Terminals

Warranty
Warranty Period:	5 year

Ordering

Ordering Information:	Specify Input, Output, Power supply
Example	CT195/0-5 A/4-20 mA/220 VAC

Packagelist

Package Checklist

1. CT195

Downloads

Datasheet:

CT195 Specification.pdf
