HS95: High Selector

- Accept Two Input Signal

- Higher Selector

- DC Current 4 - 20 mA

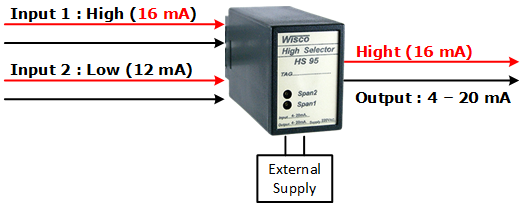

            High Selector HS95 ทำหน้าที่เลือกสัญญาณ 4 - 20 mA ที่มีค่ามากกว่าไปใช้งาน

ตัวอย่าง : Input 1 = 16 mA, Input 2 = 12 mA HS95 จะนำค่า Input 1 = 16 mA ไปใช้งาน

Specifications

Analog Input

Number of Channel:

2 Channels

Input Type:

Current

Input Range:

4 to 20 mA

Mode:

High Selector

Linearity:

± 0.2 % of Span

Analog Output

Number of Channel:

1 Channel

Output Type:

Current

Output Range:

4 to 20 mA

Power Requirements

Power Supply:

220 VAC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Connection:

Plug-in 11 pins socket

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information:
Example HS95
Packagelist

Package Checklist

1. HS95

Downloads
Datasheet:
application/pdf iconHS95 Specification.pdf
