PC37: P/I Signal Converter

- Pneumatic to Current Converter

- High Accuracy

- DIN or EN Rail Mounting

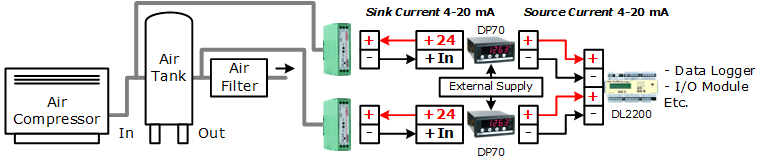

            The P/I Signal Converter PC37 transforms the Standard 0.2-1 Bar, 3-15 PSI into a Standard 4-20 mA current signal. The output signal can be connected to display units, recorder, controllers or to process control computer. The electronic components are fitted on circuit boards enclosed in a plastic housing suitable for mounting on a standard rail 35 mm.

Specifications

Pressure Input

Number of channel:

1 Channel

Input type:

Pressure

Input range:

0.2 to 1 Bar

3 to 15 PSI

Analog Output

Number of channel:

1 Channel

Output type:

Current (2 Wire)

Output range:

4 to 20 mA

Linearity:

< ± 0.02% of Span

Loop powered:

12 to 35 VDC

Output Impedance:

RL = 50 (E-15) Ω {E = Power Supply Voltage}

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W22 x H80 x D100 mm.

Mounting:

DIN or EN Rail

Warranty

Warranty Period:

1 year
Ordering
Ordering Information: Specify Input Range
Example PC37/3-15 PSI



Packagelist

Package Checklist

1. PC37

Downloads
Datasheet:
application/pdf iconPC37 Specification.pdf
