FQ95: Frequency Transducer

- Voltage Input 110 VAC, 220 VAC

- Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC

            Frequency Transducer FQ95 provided a precision DC output proportional to deviation from center frequency (50 or 60Hz) of AC. supply.

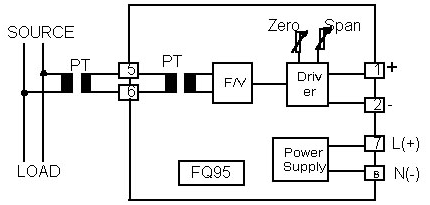

Specifications

Input

Number of Channel:

1 Channel

Input Type:

Voltage

Input Range:

110, 220 VAC

Frequency:

45 to 55, 55 to 65, 45 to 65 Hz

Analog Output

Number of Channel:

1 Channel

Output Type:

Current, Voltage

Output Range:

Current Max 0 to 1 mA (Load Resistance 10 KΩ)

Current Max 0 to 5 mA (Load Resistance 2 KΩ)

Current Max 0 to 10 mA (Load Resistance 1 KΩ)

Current Max 0 to 20 mA (Load Resistance 600 Ω)

Current Max 4 to 20 mA (Load Resistance 600 Ω)

Voltage Min 0 to 10 mVDC (Load Resistance 500 Ω)

Voltage Min 0 to 100 mVDC (Load Resistance 500 Ω)

Voltage Min 0 to 1 VDC (Load Resistance 500 Ω)

Voltage Min 0 to 5 VDC (Load Resistance 1 KΩ)

Voltage Min 1 to 5 VDC (Load Resistance 1 KΩ)

Voltage Min 0 to 10 VDC (Load Resistance 2 KΩ)

Linearity:

< ± 0.5 % of span

Power Requirements

Power Supply:

110, 220 VAC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Connection:

plug - in Wiring Screw terminals on base socket

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify Input voltage, Input range, Power supply
Example FQ95/110 VAC/45-55 Hz/4-20 mA/220 VAC
Packagelist

Package Checklist

1. FQ95
