SC25: 2-Wire Programmable Transmitter

- Space Saving 12.5 mm. Width

- 1 Input, 2 Output

- Programmable Input

- Isolated Input/Output and Power Supply

- 2-Wire Transmitter Output 4 - 20 mA

- High Accuracy 16 Bits ADC.

- Easy to Install

- Din Rail Mounting

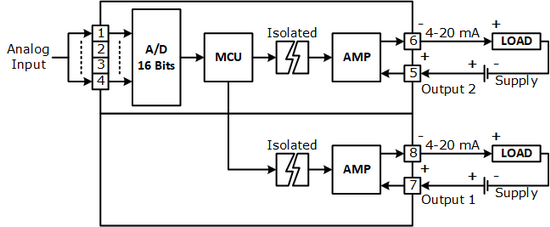

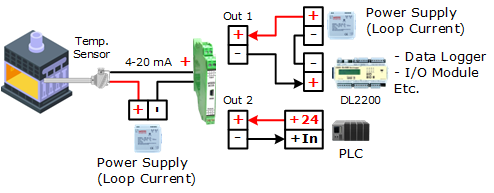

            2-Wire Programmable Transmitter SC25 เป็นอุปกรณ์แปลงสัญญาณ Thermocouple, RTD, Ohm, V, mV, mA เป็นสัญญาณ 4 - 20 mA 2-Wire Transmitter โดย Input และ Output Isolate จากกัน

Specifications

Config Port

Connector:

USB Type Mini-A (Female)

Analog Input

Number of Channel:

1 Channel

ADC Resolution:

16 Bits

Input Type:

Programmable Input

Input Range:

Thermocouple (R, S, K, E, J, T, B)

RTD (Cu10, PT100, PT1000)

Resistance (0 to 600 Ω, 0 to 1.2 KΩ, 0 to 4 KΩ)

Voltage: mVDC (0 to 80, 0 to 150)

Voltage: VDC (0 to 1, 0 to 5, 0 to 10, 0 to 15, 0 to 30)

Current (4 to 20 mA, 0 to 20 mA, 0 to 40mA)

Analog Output

Number of Channel:

2 Channel

Output Type:

Current (2-Wire)

Output Range:

4 To 20 mA

Loop Power:

15 to 35 VDC

Output Load Resistance:

Rload = (Vsupply - 15)/0.02

Isolation Voltage:

500 VAC, Between Input Output and Power Supply

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W12.5 X H100 X D113 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 year
Ordering
Ordering Information:
Example SC25
Packagelist

Package Checklist

1. SC25

2. Cable Config

Downloads
Datasheet:
application/pdf iconSC25 Specification.pdf
Manual:
application/pdf iconSC25 Utility Manual V1.1.0.pdf
Driver:
Cable Driver
Software:
SC2x Utility Setup V1.0.1
