SC22: Universal Signal Conditioner

- Programmable input

- Two isolated output

- Isolated input, output and power supply

- Universal Conversions

- 4-20mA, 0-10VDC, 0-5VDC transmitter output

- High accuracy (16bit)

- Low cost

- Easy to install

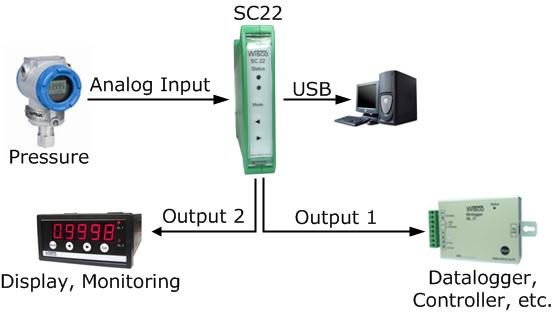

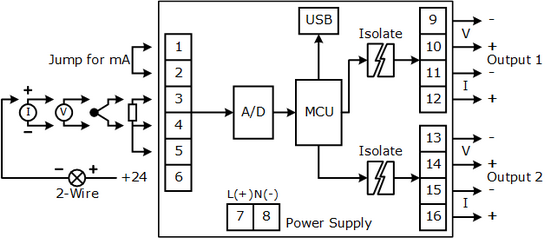

            Universal Signal Conditioner SC22 A signal conditioner is a device that converts one type of electronic signal into a another type of signal. Its primary use is to convert a signal that may be difficult to read by conventional instrumentation into a more easily read format.

Specifications

USB Interface

Compliance:

USB 1.1/2.0

Connector:

USB Type Mini-A (Female)

Speed:

12 Mbps (Full-Speed USB)

Class:

CDC

Analog Input

Number of channel:

1 Channel

Input Type:

Programmable Input

Input range:

Thermocouple: R, S, K, E, J, T, B

RTD: Cu10, PT100, PT1000

Resistance: 0 to 600 Ω, 0 to 1.2 KΩ, 0 to 4 KΩ

Voltage: mVDC: 0 to 80, 0 to 150

Voltage: DC: 0 to 1, 0 to 5, 0 to 10, 0 to 15, 0 to 30

Current: 4 to 20 mA, 0 to 20 mA, 0 to 40 mA

Loop Powered:

24 VDC (Source 2-Wire)

ADC Resolution:

16 Bits

Input Impedance:

Refer to Table 1 (Download Datasheet SC22 Specification.pdf)

Analog Output

Number of Channel:

2 Channels

Output Type:

Current, Voltage (Programmable Output)

Output Range:

Current: 4 to 20 mA

Voltage: 0 to 5, 1 to 5, 0 to 10 VDC

Output Load Resistance:

Current: Max. 1000 Ω Load

Voltage: Min. 600 Ω Load (10 VDC)

Isolation voltage:

500 VAC, Between Input Output and Power Supply

Power Requirements

Power Supply:

12 to 24 VDC

(85 to 230 VAC Optional)

Power Consumption

Standby:

155 mA @ 12 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W20 x H100 x D118 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify Power Supply
Example SC22/12to24VDC
Packagelist

Package Checklist

1. SC22

2. USB Cable

Downloads
Datasheet:
application/pdf iconSC22 Specification.pdf
Manual:
application/pdf iconSC22 Utility Manual V3.1.3.pdf
Driver:
USB Driver
Software:
SC22 Utility V3.1.4
