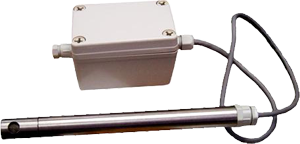

HT130: Humidity & Temperature Transmitter

- Working Range (-)40 to 125 °C

- Precision Relative Humidity ± 3 % RH

- High Accuracy Temperature ± 0.4 °C

- Output 2 Wire 4-20 mA (Loop Powered)

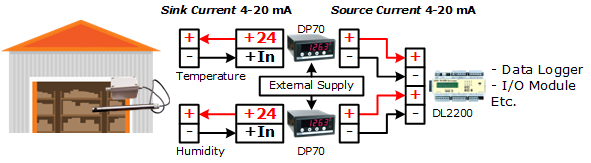

            The Humidity & Temperature Transmitter HT130 fit the requirement of accurate monitor the humidity and temperature in ambient air. The transmitter continuously measures the ambient humidity and provides an accurate, linear 4-20 mA output signal.

Specifications

Input

Number of Channel:

2 Channels

Input Type:

Humidity, Temperature

Input Range:

Humidity

Input Range: 0 to 100 % RH

Working Range: 5 to 95 % RH

Response Time: 1 sec.

Precision Relative: ± 3 % RH (Max.), 0 - 80 % RH

Temperature

Input Range: (-)40 to 125 °C

Working Range: (-)40 to 125 °C (Probe)

Accuracy: ± 0.4 °C (Max.), (-)10 to 85 °C

Analog Output

Number of Channel:

2 Channels

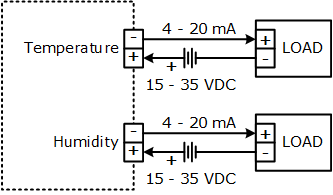

Output Type:

Current (2 Wire)

Output Range:

4 to 20 mA

Loop Powered:

12 to 35 VDC

Output Load Resistance:

Rload (Max.) = (Vsupply - 15)/0.02

Isolation Voltage:

500 Vrms, Between Output

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W65 x H140 x D55 mm.

Probe/Cable Length:

215/800 mm.

Probe Diameter:

19 mm.

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information:
Example HT130
Packagelist

Package Checklist

1. HT130

Downloads
Datasheet:
application/pdf iconHT130 Specification ENG.pdf
