VM21: AC Volt Meter (Single Phase)

- Display AC voltage

- 3 digits LED display

- 20 mm. display height



            AC Volt Meter VM21 เป็น AC Voltmeter แสดงค่า AC Voltage แบบตัวเลข Digital

Panel Cutout

Specifications

Monitor

Display:

3 Digits, 20 mm. (7-segment)

Display Color:

Red (std)

Input

Number of channel:

1 Channel

Input type:

Voltage

Input range:

0 to 500 VAC

Linearity:

± 0.25 % of measuring range

Accuracy:

± 0.25 % + 1 digit of measuring range

Power Requirements

Power Supply:

110, 220 VAC

24, 110, 125 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W96 x H48 x D120 mm.

Panel Cutout:

W90 x H40 mm.

Mounting:

Panel flush mounting

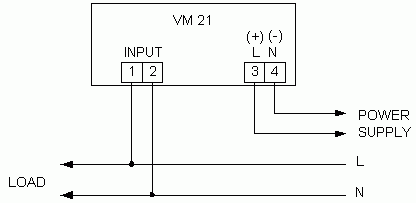

Wiring:

Screw terminals

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information: Specify power supply
Example VM21/220 VAC



Packagelist

Package Checklist

1. VM21

Downloads
Datasheet:
application/pdf iconVM21 Specificaion.pdf
