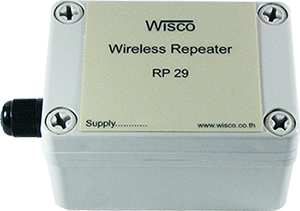

RP29: Wireless Repeater

- Long Distance 700 m.

- No Wiring (RF Link)

- Easy to install

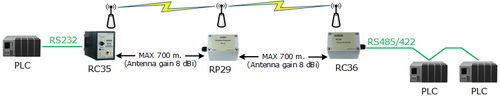

            Wireless Repeater RP29 เป็นอุปกรณ์ที่ใช้สำหรับทวนสัญญาณ เพื่อเพิ่มระยะทางของสัญญาณวิทยุที่ได้รับมาจาก RC35, RC36, RDIO20, RDIO2100, RAIO20, Wireless Remote Analog I/O (RAI200, RAO200)

Specifications

Wireless Interface

RF Standard:

802.15.4/Zigbee Compliant

Frequency Band:

2.4 GHz

Max. RF Data Rate:

250 Kbps

RX Sensitivity:

(-)102 dBm

TX Power:

(+)10 dBm (Max)

Transmission Distance:

Up to 90 m. Indoor/Urban

Up to 700 m. Outdoor RF line-of-sight (With Antenna gain>8dBi)

Antenna Connector:

RP-SMA, Jack/Female

RF Channel:

12 Channel

Serial Interface

Serial Standards:

RS-485/422 (Isolated) 5 pin Terminal Block

Loading:

RS485/422 Max 32 Unit

Distance:

RS485/422 Length 1 Km.

Power Requirements

Power Supply:

12 to 24 VDC

Power Consumption

Stanby:

180 mA @ 12 VDC

Transfer Data:

185 mA @ 12 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W95 x H65 x D55 mm.

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information:
Example RP29
Packagelist

Package Checklist

1. RP29

2. Cable Config

Downloads
Datasheet:
application/pdf iconRP29 Specification.pdf
Manual:
application/pdf iconWireless Serial Manual V2.1.1.pdf
Driver:
Cable Driver
Software:
Wireless Serial Utility V3.0.0
