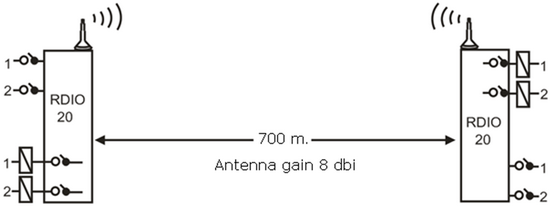

RDIO20: Wireless Switch

- Control 2 Digital Input / Output

- Long Distance 700 m.

- No Wiring (RF Link)

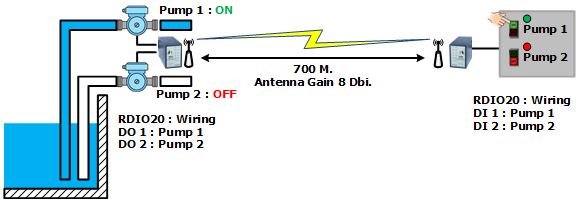

            Wireless Switch RDIO20 เป็นอุปกรณ์ที่ใช้ควบคุม Switch เพื่อปิด - เปิด อุปกรณ์ไฟฟ้าซึ่งอยู่ในระยะไกล โดยผ่านสัญญาณวิทยุ ช่วยให้ประหยัดค่าใช้จ่ายในการเดินสายและติดตั้ง

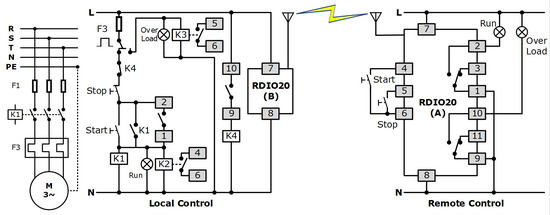

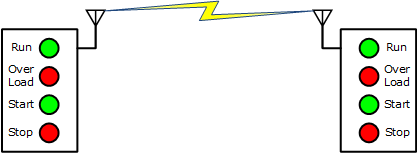

Remote motor control application

Specifications

Wireless Interface

RF Standard:

802.15.4/Zigbee Compliant

Frequency Band:

2.4 GHz

Max. RF Data Rate:

250 Kbps

RX Sensitivity:

(-)102 dBm

TX Power:

(+)10 dBm (Max)

Transmission Distance:

Up to 90 m. Indoor/Urban

Up to 700 m. Outdoor RF line-of-sight (With Antenna gain>8dBi)

Antenna Connector:

RP-SMA, Jack/Female

Network Topology:

Point-to-Point

Digital Input

Digital Channel:

2 Channels

Sensor Type:

Dry Contact (Opto Isolated)

Dry Contact:

ON : Short to GND

OFF : Open

Relay Output

Number of Channel:

2 Channels

Relay Type:

NO / NC

Contact Rating:

6 A @ 250 VAC

6 A @ 30 VDC

Power Requirements

Power Supply:

85 to 230 VAC

12 to 35 VDC Optional

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information: Specify Power Supply
Example RDIO20/220VAC
Packagelist

Package Checklist

1. RDIO20

Downloads
Datasheet:
application/pdf iconRDIO20 Specification.pdf
