RC46: Radio Modem

- Long Distance 700 m.

- No Wiring (RF Link)

- Easy to install

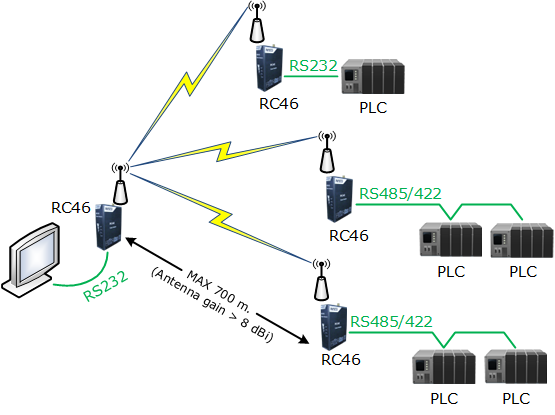

            Radio Modem RC46 เป็นระบบไร้สายที่ออกแบบมาเพื่อแทนที่ระบบ RS232, RS485/422 ที่ต้องมีการเดินสาย เพื่อลดความยุ่งยากในการเดินสายและง่ายต่อการติดตั้ง

Specifications

Wireless Interface

RF Standard:

802.15.4

Frequency Band:

2.4 GHz

Max. RF Data Rate:

625 Kbps

RX Sensitivity:

(-)108 dBm

TX Power:

(+)18 dBm (Max)

Transmission Distance:

Up to 90 m. Indoor/Urban

Up to 700 m. Outdoor RF line-of-sight (With Antenna gain > 8dBi)

Antenna Connector:

RP-SMA, Jack/Female

RF Channel:

16 Channel

Network Topology:

Point-to-Point or Point-to-Multipoint

Serial Interface

Serial Standards:

RS-232 connector DB9 male

RS-485/422 (Isolated) 5 pin terminal block

Loading:

RS485/422 Max 32 Unit

Distance:

RS232 Length 15 m.

RS485/422 Length 1 Km.

Serial Parameter

Baud Rate:

4800, 9600, 19200, 38400, 57600, 115200

Data Bit:

7, 8

Stop Bit:

1, 2

Parity:

None, Odd, Even

Power Requirements

Power Supply:

12 to 24 VDC

Power Consumption

Standby:

120 µA @ 12 VDC

Operate:

130 µA @ 12 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W30 x H122 x D98 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information:
Example RC46
Packagelist

Package Checklist

1. RC46

2. RS232 Cable

Downloads
Datasheet:
application/pdf iconRC46 Specification.pdf
Manual:
application/pdf iconRC46 Utility Manual V1.0.0.pdf
Software:
RC46 Utility V1.0.0
