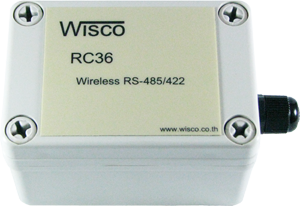

RC36: Wireless RS485/422

- Long Distance 700 m.

- No Wiring (RF Link)

- Easy to install

            Wireless RS485/422 RC36 เป็นอุปกรณ์ที่ใช้สำหรับเชื่อมต่อสัญญาณ RS485/422 ผ่านทางสัญญาณวิทยุ ทำให้ประหยัดค่าใช้จ่ายในการติดตั้งโดยไม่ต้องเดินสายสัญญาณ

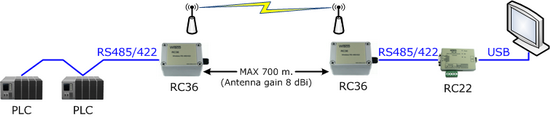

การเชื่อมต่อผ่านทาง RS485/422

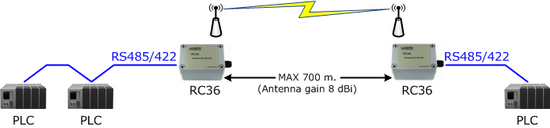

การเชื่อมต่อกับ PLC

Specifications

Wireless Interface

RF Standard:

802.15.4/Zigbee Compliant

Frequency Band:

2.4 GHz

Max. RF Data Rate:

250 Kbps

RX Sensitivity:

(-)102 dBm

TX Power:

(+)10 dBm (Max)

Transmission Distance:

Up to 90 m. Indoor/Urban

Up to 700 m. Outdoor RF line-of-sight (With Antenna gain>8dBi)

Antenna Connector:

RP-SMA, Jack/Female

RF Channel:

12 Channel

Network Topology:

Point-to-Point

Serial Interface

Serial Standards:

RS-485/422 (Isolated) 5 pin Terminal Block

Loading:

RS485/422 Max 32 Unit

Distance:

RS485/422 Length 1 Km.

Serial Parameter

Baud Rate:

4800, 9600, 19200, 38400, 57600, 115200

Data Bit:

7, 8

Stop Bit:

1, 2

Parity:

None, Odd, Even

Power Requirements

Power Supply:

12 to 24 VDC

Power Consumption

Stanby:

180 mA @ 12 VDC

Transfer Data:

185 mA @ 12 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W95 x H65 x D55 mm.

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information:
Example RC36
Packagelist

Package Checklist

1. RC36

Downloads
Datasheet:
application/pdf iconRC36 Specification.pdf
Manual:
application/pdf iconWireless Serial Manual V2.1.1.pdf
Driver:
Cable Driver
Software:
Wireless Serial Utility V3.0.0
