RAIO20: Wireless Analog I/O Module

- 1 Analog In - Out

- 1 Digital In - Out

- Long Distance 700 m

- No Wiring (RF Link)

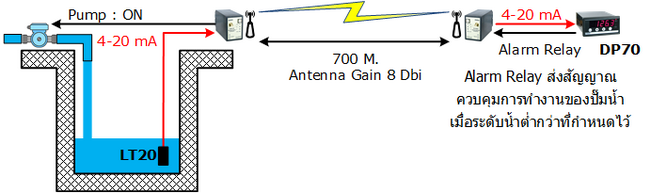

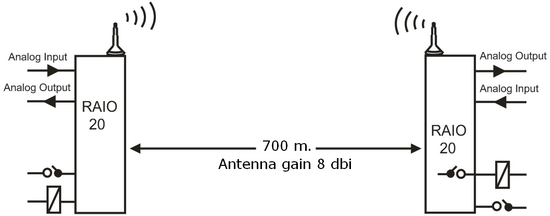

            Wireless Analog I/O Module RAIO20 เป็นอุปกรณ์ทำหน้าที่ รับ-ส่ง สัญญาณ Analog (4-20mA, 0-10VDC, 1-5VDC) และ Digital (ON - OFF) ผ่านทางสัญญาณวิทยุจากจุดหนึ่งไปอีกจุดหนึ่ง ช่วยให้ประหยัดค่าใช้จ่ายในการเดินสายและติดตั้ง

Specifications

Wireless Interface

RF Standard:

802.15.4/Zigbee Compliant

Frequency Band:

2.4 GHz

Max. RF Data Rate:

250 Kbps

RX Sensitivity:

(-)102 dBm

TX Power:

(+)10 dBm (Max)

Transmission Distance:

Up to 90 m. Indoor/Urban

Up to 700 m. Outdoor RF line-of-sight (With Antenna gain>8dBi)

Antenna Connector:

RP-SMA, Jack/Female

Network Topology:

Point-to-Point

Analog Input

Number of channel:

1 Channel

Input type:

Current, Voltage

Input range:

Current (4-20, 0-20 mA)

Voltage (0-5, 1-5, 0-10 VDC (Optional))

Digital Input

Number of Channel:

1 Channel

Sensor Type:

Dry Contact or NPN Open Collector

Dry Contact:

ON : Short to GND

OFF : Open

Analog Output

Number of channel:

1 Channel

Output type:

Current, Voltage

Output range:

Current (4 to 20, 0 to 20 mA)

Voltage (0 to 5, 1 to 5, 0 to 10 VDC (Optional))

DAC Resolution:

16 Bits

Relay Output

Number of channel:

1 Channel

Relay Type:

NO / NC

Contact Rating:

5 A @ 250 VAC

5 A @ 30 VDC

Power Requirements

Power Supply:

85 to 230 VAC

12 to 35 VDC Optional

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50x H70x D130 mm

Mounting:

DIN Rail

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information: Specify Power Supply, Input, Output
Example RAIO20/220VAC/4-20mA/4-20mA
Packagelist

Package Checklist

1. RAIO20

2. USB Cable

Downloads
Datasheet:
application/pdf iconRAIO20 Specification.pdf
Manual:
application/pdf iconRAIO20 Manual V1.1.pdf
Driver:
USB Driver
Software:
RAIO20 Utility V1.1
