Wireless Interface
| | |
RF Standard:
| 802.15.4/ZigBee compliant
| 802.15.4/ZigBee compliant
|
Frequency Band:
| 2.4 GHz
| 2.4 GHz
|
Max. RF Data Rate:
| 250 Kbps
| 250 Kbps
|
RX Sensitivity:
| (-)102 dBm
| (-)102 dBm
|
TX Power:
| (+)10 dBm (Max)
| (+)10 dBm (Max)
|

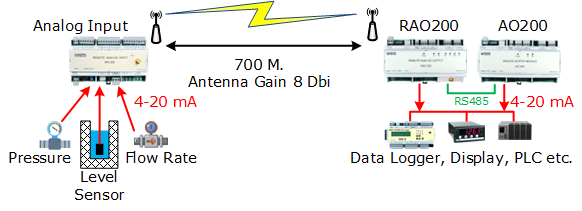

Transmission Distance:
| Up to 90 m. Indoor/Urban
| Up to 90 m. Indoor/Urban
|
| Up to 700 m. Outdoor RF line-of-sight
(With Antenna gain>8dBi)
| Up to 700 m. Outdoor RF line-of-sight
(With Antenna gain>8dBi)
|
Antenna Connector:
| RP-SMA, Jack/Female
| RP-SMA, Jack/Female
|
Network Topology:
| Point-to-Point
| Point-to-Point
|
USB Parameter
| | |
Compliance:
| -
| USB 1.1/2.0 (Configuration)
|
Connector:
| -
| USB type B
|
Speed:
| -
| 12 Mbps (Full-Speed USB)
|
Class:
| -
| CDC
|
Serial Interface
| | |
Serial Standards:
| RS-232 RJ12 6 pin connector (Configuration)
| RS-232 RJ12 6 pin connector
|
| -
| RS-422/485 (Isolated) 2 pin terminal block
|
| -
| *** Note RS232/RS485 For Connect to AO200
|
Loading:
| -
| RS485 Max 32 Unit
|
Distance:
| -
| RS232 Length 15 m.
|
| -
| RS485 Length 1 Km.
|
Analog Input
| | |
Number of Channel:
| 8 Channels
| -
|
Input Type:
| Voltage or Current
| -
|
Input Range:
| Voltage (0 to 1, 0 to 5, 0 to 10 VDC)
| -
|
| Current (0 to 20, 4 to 20mA)
| -
|
Loop Power:
| 24 VDC (2 Wire)
| -
|
Accuracy:
| ± 0.05 % (Voltage)
| -
|
| ± 0.025 % (Current)
| -
|
ADC Resolution:
| 16 Bits
| -
|
Analog Output
| | |
Number of Channel:
| -
| 4 Channels (Opto Isolated)
|
Output Type:
| -
| Voltage or Current
|
Output Rang:
| -
| Voltage (0-5, 1-5, 0-10, 2-10 VDC Optional)
|
| -
| Current (4-20 mA)
|
Accuracy:
| -
| ± 0.1 % (Voltage)
|
| -
| ± 0.2 % (Current)
|
DAC Resolution:
| -
| 16 Bits
|
Output Impedance:
| -
| 1 KΩ
|
Isolation voltage:
| -
| 500 VAC, between output and power supply
|
Relay Output
| | |
Number of Channel:
| 1 Channel
| -
|
Relay Type:
| N.O., N.C.
| -
|
Contact Rating:
| 30 VDC @ 2 A
| -
|
| 60 VDC @ 0.5 A
| -
|
| 120 VAC @ 0.5 A
| -
|
Power Requirements
| | |
Power Supply:
| 220 VAC
| 220 VAC
|
| 12, 24 VDC (Optional)
| 12, 24 VDC (Optional)
|
Environmental Limits
| | |
Operating Temperature:
| 0 to 55 °C
| 0 to 55 °C
|
Operating Humidity:
| 5 to 95 %RH
| 5 to 95 %RH
|
Storage Temperature:
| 0 to 70 °C
| 0 to 70 °C
|
Physical Characteristics
| | |
Dimension:
| W160 x H90 x D60 mm.
| W160 x H90 x D60 mm.
|
Mounting:
| DIN Rail
| DIN Rail
|
Warranty
| | |
Warranty Period:
| 5 Year
| 5 Year
|
