AI210: PC Based Recorder

PC – Based Recorder

AI 210

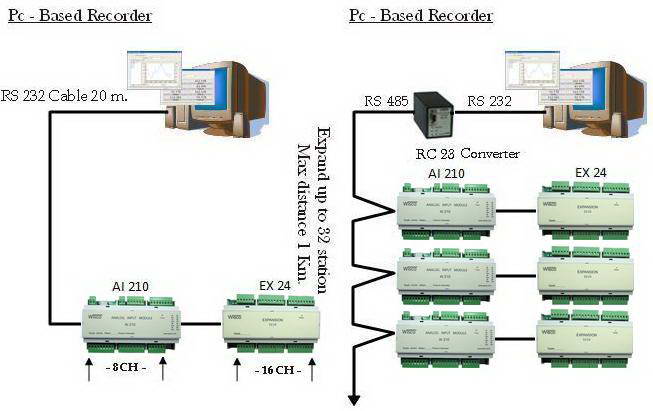

8 channels expandable to 24 channels

PC - Based Recorder AI 210 เป็นอุปกรณ์ที่ช่วยให้ PC สามารถทำหน้าที่เป็น Recorder โดยเครื่อง PC

จะอ่านค่าวัดจากอุปกรณ์ภายนอก เช่น Thermocouple, Pressure, Flow, Voltage, Current ฯลฯ แล้วนำ

ค่าที่วัดได้มาประมวลผลดังนี้

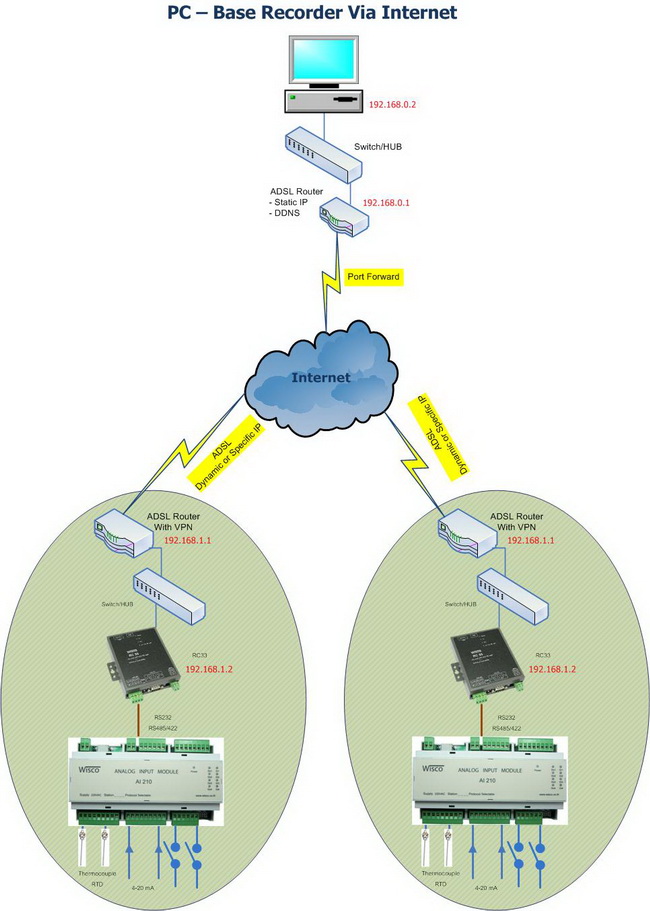

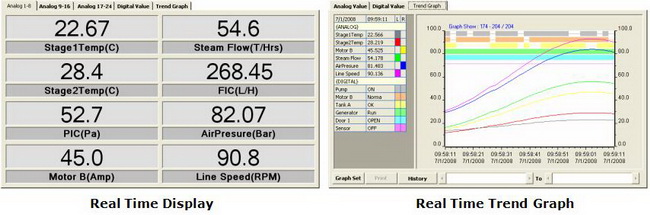

1 ) Real Time Display

      - แสดงค่าที่วัดได้ในรูปแบบตัวเลขแบบ Real Time ที่จอ Computer

2 ) Real Time Trend Graph

      - แสดงค่าที่วัดได้แบบReal Time ในรูปแบบของ Trend Graph ทำให้ทราบถึงการเปลี่ยนแปลงของค่าวัดในช่วงเวลาต่างๆ

3 ) Recorder File

      - บันทึกข้อมูลแบบต่อเนื่องในรูปแบบ File Data ลงใน Hard disk มีวันที่และเวลาแสดงกำกับไว้ทุกข้อมูล

      - ข้อมูลที่อยู่ใน File สามารถนำกลับมาแสดงผลแบบตัวเลข, Plot Trend Graph สั่งพิมพ์ข้อมูลออกทาง Printer ได้

      - Convert File ไปใช้ร่วมกับ Program อื่นๆ เช่น Microsoft Word , Excel



Wireless Data Logger


Product Review

Specifications

Serial Interface

Serial Standards:

RS232 Connector RJ12 6 Pin

RS485 (Isolated) 2 Pin Terminal Block

Loading:

RS485 Max 32 Unit

Distance:

RS232 Length 15 m.

RS485 Length 1 Km.

Protocol:

MODBUS (ASCII, RTU), Wisco ASCII

Support Software:

Citect, Wonderware, Lab View, Fix, Genesis, etc.

Serial Parameter

Baud Rate:

4800, 9600, 19200, 57600

Data Bits:

8

Stop Bits:

1

Parity:

None

Analog Input

Number of Channel:

8 Channels up to 24 Channels (EX24 Module)

Input Type:

Programmable Input

Input Range:

Thermocouple (R, S, K, E, J, T, B)

RTD (Cu10, PT100, PT1000)

Resistance (0 to 600 Ω, 0 to 1.2 KΩ, 0 to 4 KΩ)

Voltage mVDC (0 to 80, 0 to 150 mVDC)

Voltage (0 to 1, 0 to 5, 0 to 15, 0 to 30 VDC)

Current (4 to 20, 0 to 20, 0 to 40 mA)

ADC Resolution:

16 Bits

Isolation:

Relay Isolated

Digital Input

Number of Channel:

4 Channels

Sensor Type:

wet Contact (Opto Isolated)

wet Contact (DI to GND):

ON: 12 to 24 VDC

OFF: 0 to 3 VDC

Digital Output

Number of Channel:

4 Channels

Output Type:

NPN Open Collector

Recording

Recording Interface:

1 Sec - 18 Hours (Programmable)

Record Mode:

Stop When Full or Roll Over

Data Format:

Can be Exported to MS Excel

Power Requirements

Power Supply:

85 to 230 VAC

12, 24 VDC (Optional)

Power Consumption

Standby:

280 mA @ 12 VDC

Start Record:

350 mA @ 12 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W160 x H90 x D60 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 year

Ordering
Ordering Information: Specify Power Supply
Example AI210/85-230VAC
Packagelist

Package Checklist

1. AI210

2. RS-232 Cable

3. Resistor 250 Ω
