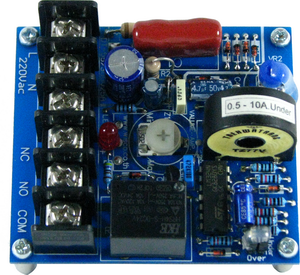

HB20: Heater Break Relay

- Current Input (0-5 A, 0-10 A)

- Operating Mode Under or Over

Specifications

Input

Number of channel:

1 Channel

Input type:

Current (AC)

Input range:

0 to 5, 0 to 10 A

Current Setpoint:

0 to 100 % of input range

Operating Mode:

Relay energized when Under Current

Relay Output

Number of channel:

1 Channel

Relay Type:

N.O. (SPDT)

Contact Rating:

5 A @ 250 VAC

Power Requirements

Power Supply:

220 VAC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W65 x H65 x D32mm.

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information: Specify Input
Example HB20/0-5 A



Packagelist

Package Checklist

1. HB20

Downloads
Datasheet:
application/pdf iconHB20 Specification.pdf
