Forklift Speed Alarm

Motor Vehicle Safety Management System

Features

With LED Display Screen. Wireless Sensor Has the Function of Reverse Voice Prompt.
Wireless Speed Measurement and Wired Speed Measurement are Compatible (Choose Either - or).
With the Design of Wide Voltage Power Supply, DC 11 V ~ 48 V.
Alarm can be Controlled by Remote Controller Within 1 Meters.
4 - Level Volume Adjustment. External Powerful Horn for Alarm, Warning Sound Up to 120 db.
Two Kinds of Warning: Flash Lamp and Voice Alarm.
Three - Level Speed Setting. Different Levels of Speed Has Different Sound for Warnings.
Alarm Locking Time can be Adjusted from 0 To 99 Seconds. If The Speed of Forklift Exceeds the Set Speed, Will Warn Automatically.
Waterproof Capability is IP68, Even Able to Work Well in Rain.
Use Wireless Sensor, Making Installation Simpler.
Use Metal Sensor Installation, Compatible with The Traditional Speed Measurement Way.
Adopt Relay to Control Oil Circuits, Realizing Over Speed Locking and Speed Limit Control. Mechanical Speed Limit Can Be Used Together with Mechanical Throttle Speed Limiter.

Technical Parameters

Operating Voltage: DC 12 V ~ 48 V
Power Consumption: 5 W
Alarm Load: ≤100 mA/DC 12 V
Alarm Output Loudness: 120 db
Working Temperature: (-)20 ~ 60 °C
Speed Testing Signal Input Parameter:
24 V ≥ High Level ≥ 5 V, Low Level ≤ 0.3 V; Drive Current ≥ 15 MA; Frequency ≤ 10 K;
Min Pulse Width ≥ 100 uS (Microsecond); Effective Signal: Falling Edge is Effective.
Wireless Speed Testing Sensor:
Built - In 3 V/500 MA Button Cell, Working Temperature: 8 °C ~ 40 °C,
Storage Temperature: (-)8 °C ~ 35 °C;

Working Time (For Reference): Up to More Than 4 Months If Working Over 24 Hours Everyday, More Than 8 Months If Working for 8 Hours Everyday. (Note: Wired Sensor Has No This Parameter.)

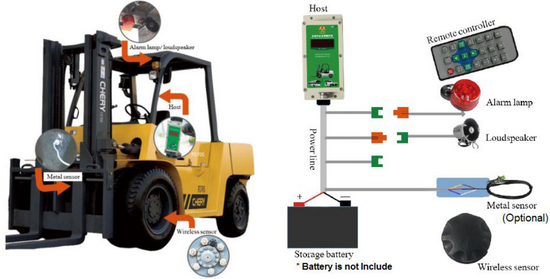

Packagelist

Package Checklist

1. Host

2. Remote Control

3. Alarm Lamp

4. Loud Speaker

5. Wireless Sensor

Downloads

Datasheet:

Forklift Speed Alarm Specification.pdf

Manual:

Forklift Speed Alarm Manual.pdf
