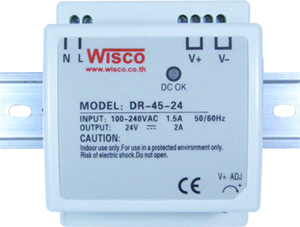

DR-45-24: Power Supply

- Output 24 VDC, 2 A

- Input 100 - 240 VAC

- DIN Rail Mounting
Specifications

Output

DC Output:

24 VDC

Voltage error:

± 1 %

Rate Output Current:

2A

Output Current Rag:

0 - 2 A

Wave and Noise:

480 mVp-p

Inlet Stability:

± 1 %

Load Stability:

± 1 %

DC Output Power:

48 W

Efficiency:

80%

Adjustable range for DC Voltage:

21.6 - 26.4 VDC

Power Requirements

Power Supply:

110 - 240 VAC

Input Current:

1.5 A

AC Impulse:

Cold - Start Current 30A/115V, 60A/230V

Leakage Current:

<1mA/240VAC

Overload Protection:

105 % - 150 %

Overvoltage Protection:

6 - 32.4 V

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W78 x H93 x D67 mm.

Mounting:

DIN Rail

Safety Standards:

Meet UL1012

EMC Standards:

Meet FCC Part 15J Conduction Class B

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information:
Example DR-45-24
Packagelist

Package Checklist

1. DR-45-24

Downloads
Datasheet:
application/pdf iconDR-45-24 Specification.pdf
