DP70: Universal Input Indicator

- 5 Digits Display

- Programmable Input type

- 2 Alarm Relay

- 1 Analog output or RS485 (Option)

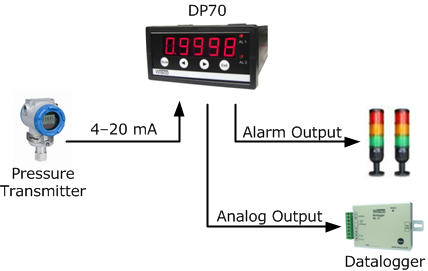

            Universal Input Indicator DP70 เป็นอุปกรณ์แสดงค่าวัด สามารถเลือกชนิดของ Input ได้, แสดงผลได้ถึง 5 หลัก, ตั้ง Alarm ได้ 2 ชุด สามารถตั้งค่าได้โดยอิสระ และสามารถเลือก ให้เป็น Hi Alarm หรือ Low Alarm ได้ นอกจากนี้ยังมี Analog Output อีก 1 ช่อง



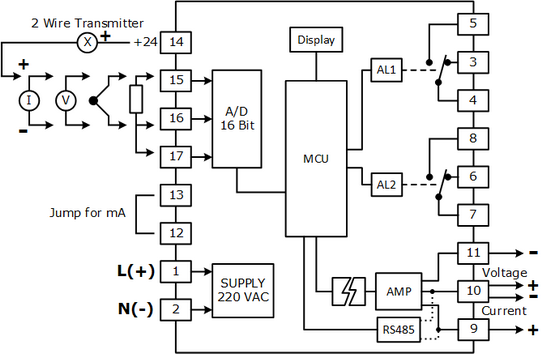

Panel Cutout

Specifications

Serial Interface

Serial Standards:

RS485 (Isolated) 2 Pin Terminal Block (Optional)

Loading:

RS485 Max 32 Unit

Distance:

RS485 Length 1 Km.

Protocol:

MODBUS ASCII/RTU

Supply Software:

Citect, Wonderware, LAB View etc.

Monitor

Display:

5 digits, 14.2 mm. (7-Segment)

Display Color:

Red (std)

Analog Input

Number of channel:

1 Channel

Input type:

Programmable

Input range:

Thermocouple (R, S, K, E, J, T, B)

RTD (Cu10, PT100, PT1000)

Resistance (0 to 600 Ω, 0 to 1200 Ω, 0 to 4000 Ω)

Voltage mVDC(0 to 80, 0 to 150 mVDC)

Voltage (0 to 1, 0 to 5, 0 to 10, 0 to 30 VDC)

Current (4 to 20, 0 to 20, 0 to 40 mA)

ADC Resolution:

16 bits

Accuaracy:

± 1 least significant digit

Analog Output

Number of Channel:

1 Channel

Output type:

Current, Voltage (Optional)

Output Range:

Current (0 to 20, 4 to 20 mA)

Voltage (0 to 1, 0 to 5, 0 to 10 VDC)

Output Impedance:

Current Maxload 800 Ω

Voltage Minload 1000 Ω

Relay Output

Number of Channel:

2 Channels (Alarm)

Relay Type:

N.O. or N.C.

Contact Rating:

6 A @ 250 VAC

6 A @ 30 VDC

Power Requirements

Power Supply:

85 to 230 VAC

12 to 35 VDC Optional

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W96 x H48 x D120 mm.

Panel Cutout:

W90 x H40 mm.

Mounting:

Panel Flush Mounting

Wiring:

Screw terminals

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify Power Supply, Output
Example DP70/220VAC/4-20mA
Packagelist

Package Checklist

1. DP70
