DA98: D To A Converter

- 8 bit D to A converter

- Isolated input, output

- PLC analog Output

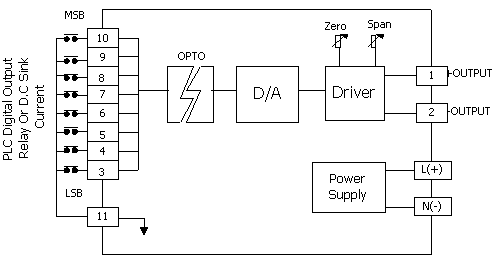

            D To A Converter DA 98 จะรับสัญญาณ Digital จาก Digital Output ของ PLC ในรูปของ Binary Code แปลงเป็นค่า Analog (0 to 10 VDC, 4 to 20 mA, 1 to 5 VDC) อุปกรณ์ DA98 ช่วยให้สามารถใช้ Digital Output ของ PCL ควบคุมสัญญาณ Analog ได้ โดยไม่จำเป็นต้องใช้ Analog Output ของ PLC

Specifications

Digital Input

Number of channel:

8 Channels (Opto isolated)

Sensor Type:

Dry Contact (Binary Code)

Dry Contact:

ON : Short to GND

OFF : Open

Analog Output

Number of Channel:

1 Channel

Output Type:

Current, Voltage

Output range:

Current (4 to 20 mA)

Voltage (0 to 10, 0 to 5, 1 to 5 VDC)

ADC Resolution:

8 bit D to A Converter

Isolation voltage:

500 VAC (1 min.) between input, output, power supply

Power Requirements

Power Supply:

100, 110, 220 VAC

24 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Construction:

Plug-in 11 pins socket

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify Output, Power Supply
Example DA98/4-20mA/220VAC
Packagelist

Package Checklist

1. DA98

Downloads
Datasheet:
application/pdf iconDA98 Specification.pdf
