CM21: AC Amp. Meter (Single Phase)

- Display AC Current

- 3 ½ digits LED display

- Selectable CT Ratio



            AC Amp. Meter (Single Phase) CM21 เป็น AC Amp. Meter แสดงค่ากระแสไฟ AC แบบตัวเลข Digital CM21 สามารถตั้งให้ใช้กับ CT ได้หลายขนาด

Panel Cutout

Specifications

Monitor

Display:

3 ½ Digits, 14.3 mm. (7-segment)

Display Color:

Red (std)

Input

Number of channel:

1 Channel

Input type:

Current

Input range:

0 to 5 Aac, Floating (Internal CT)

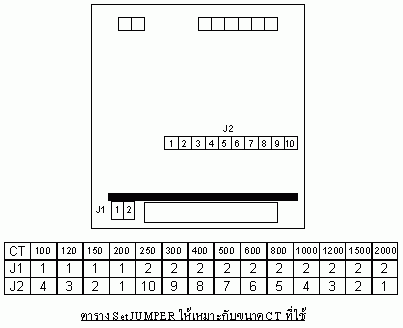

CT Setting:

100 A, 120 A, 150 A, 200 A, 250 A, 300 A, 400 A

500 A, 600 A, 800 A, 1200 A, 1500 A, 2000 A

Linearity:

± 0.25 % of measuring range

Accuracy:

± 0.25 % + 1 digit of measuring range

Power Requirements

Power Supply:

110, 220 VAC

24, 110, 125 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W96 x H48 x D120 mm.

Panel Cutout:

W90 x H40 mm.

Mounting:

Panel flush mounting

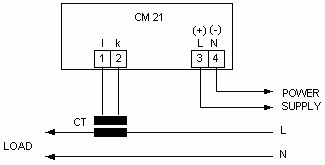

Wiring:

Screw terminals

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information: Specify CT, Power Supply
Example CM21/500/5A/220VAC



Packagelist

Package Checklist

1. CM21

Downloads
Datasheet:
application/pdf iconCM21 Specification.pdf
