AL200 : Modbus Line Alarm System
|
|
- Sending Alarm to LINE Messaging API, Telegram, E-Mail
- Programmable Alarm Message and Pictures - Buffer 100 Alarm Message (Network Fail) - Keep 80 Data as Tag (Max. 128 tags Option) - Serial Interface (RS232/485 and Ethernet Interface (LAN or WI-FI) - Support MODBUS ASCII, RTU, TCP/IP - Provides MODBUS TCP Server - Remappable MODBUS Register Address |

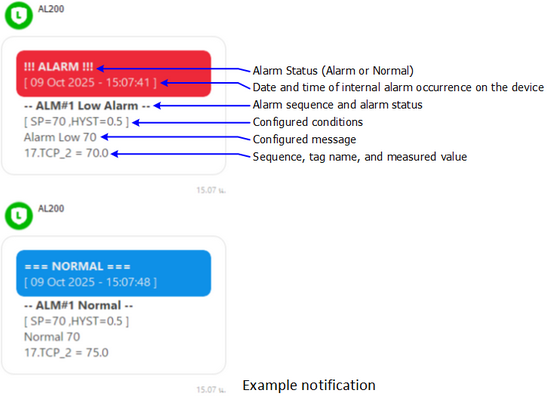

Modbus Line Alarm System AL200 It is a device designed to send notification messages (Alarm) to LINE Messaging API, Telegram, E-Mail or Wisserv (Database). When the measured value is greater than or less than the pre-programmed value, the user can program a notification message and image through various web browsers.
In case the alarm cannot be sent, which may be due to a network problem (Network Failed), the AL200 can hold the data of up to 100 alarms. When the network connection is re-established, the AL200 will automatically send the held alarm data.
AL200 reads values from devices communicating via Modbus Protocol ASCII/RTU (RS232/485) and Modbus TCP/IP (LAN, WiFi) such as PLC, Power Meter, Analog Module, RTU, etc.
AL200 can also send the collected data to other devices for further reading via the MODBUS TCP/IP protocol. It can also change the register address (Remappable MODBUS Register Address) by rearranging it as desired.
