LB20: RS-232 Line Booster

ยกเลิกจำหน่าย

- Extending RS-232

- Data Rate 115.2 Kbps.

- DB 9 Connector

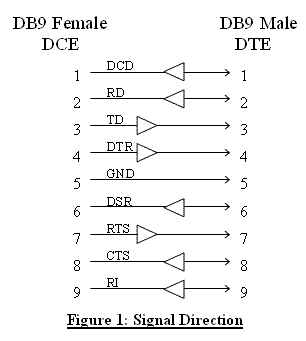

           The Line Booster LB 20 is a RS-232 repeater that re- transmits all 8 signals and carries the ground line through. Many CE computers, Laptops, and some desktops ship with low-power versions of RS-232 port that are unable to drive port-powered devices or full - length RS-232 cabling.

           The LB 20 can amplify these weak signals up to the RS-232 Standard for uses such as running port powered devices. It is also ideal for extending full- powered RS-232 cable runs beyond the typical 50 to 100 feet.

Specifications

Serial Interface

Serial Standards:

TDB9 female for DCE side, DB9 male for DTE side

Data Rate:

Up to 115.2 Kbps.

Power Requirements

Power Supply:

12 to 16 VDC max

Power Consumption

Standby:

40 mA

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W117 x H65 x D23 mm.

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information:
Example LB20
Packagelist

Package Checklist

1. LB20

2. RS-232 Cable

3. Adapter 12 VDC

Downloads
Datasheet:
application/pdf iconLB20 Specification.pdf
