RS32: Remote Switch

- 7” Touch Screen Panel

- Control 32 Switch

- 2-Wire RS485 Wiring

- Record On-Off Time

            Remote Switch RS32 This touchscreen panel enables remote control of On/Off switches via a single pair of RS485 signal cables, supporting up to 32 switch units. It also logs the On/Off times for each switch for historical review and allows data to be saved to an SD card in CSV format, which is compatible with Windows applications such as Excel.

Connection via RS485.

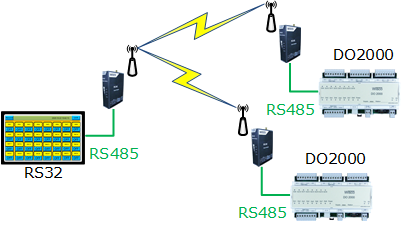

Connection via Wireless (RC45).

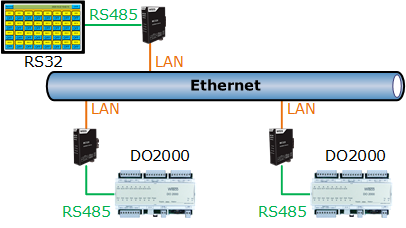

Connection via Ethernet (MC320).

Specifications

Display

Display Size:

7″ Touch Screen

Serial Interface

Serial Standards:

RS485 (Isolated) 2 Pin Terminal Block

Distance:

RS485 Length 1 Km.

Protocol:

MODBUS RTU

Serial Parameter

Baud Rate:

9600

Data Bits:

8

Stop Bits:

1

Parity:

None

Relay Output

Number of Channel:

32 Channels

Relay Type:

N.O.

Contact Rating:

5A@250VAC, 5A@30VDC

Power Requirements

Power Supply:

85 to 230 VAC

(12 to 35, 110 to 125 VDC Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W220 x H140 x D60 mm.

Panel Cutout:

W202 x H122 mm.

Mounting:

Panel Mount

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information: Specify Power Supply
Example RS32/220VAC
Packagelist

Package Checklist

1. RS32

2. DO2000

Downloads
Datasheet:
application/pdf iconRS32 Specification ENG.pdf
