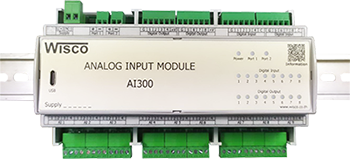

AI300 : Analog Input Module

- 9 Programmable Analog Input Type
   (Isolated)

- 8 Digital Input/Output Channels

- Digital Input can be Programmable
   (Status, Counter, Frequency,
   Quadrature Counter, etc.)

- Support Protocol MODBUS RTU / ASCII
   Command (RS485)

            Analog Input Module AI300 is a device that can receive 9 Analog Input signals, 8 Digital Input channels and control 8 Digital Output channels. Can be connected via port. USB or RS485 port, users can develop programs on PC, PLC or Touch Screen to read. Input values and control Digital Output using the MODBUS ASCII/RTU or Wisco protocol. ASCII by AI300 can also be powered from a USB port.

            Analog Input can be programmed to be used with sensors such as Thermocouple, RTD, and Programmed to receive signals Voltage (0-125, 0-500 mVDC, 0-5, 0-10 VDC), Current (4-20 mA) etc.

            Digital Input can receive both Logic and Counter signals. Logic will show the “ON” or “OFF” for Counter can be programmed to be different types of Counters, such as showing total values. (Totalized) of the number of Input Pulse, record the Totalized value of Flow, rotational speed (RPM), Frequency (Hz), measure the distance of movement of the workpiece (Rotary Encoder), record the Kwh. value of electricity usage or timekeeping (Timer), etc.

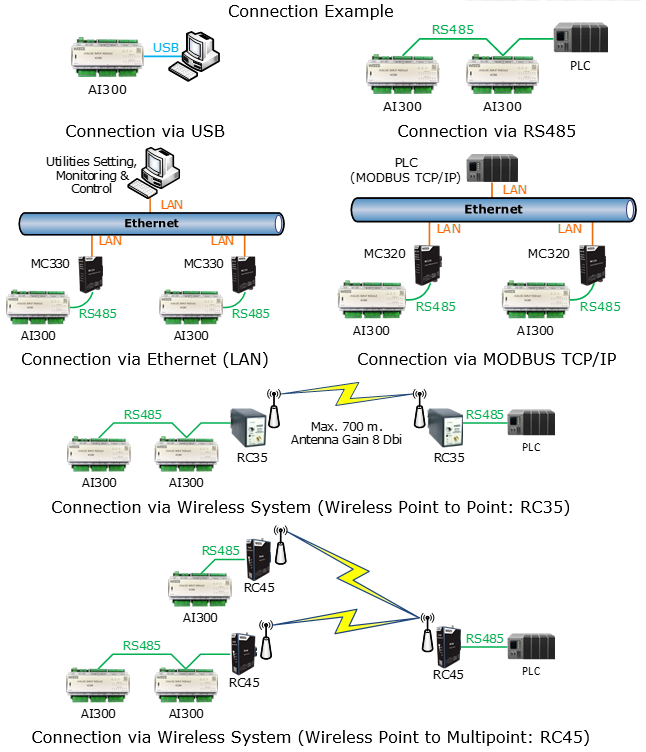

Example of connection

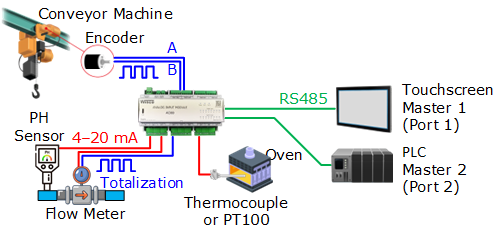

Basic use a Products

Specifications

USB Interface

Compliance:

USB 1.1/2.0/3.0

Connector:

USB Type C (Female)

Serial Interface

Serial Standards:

2 Port RS485 (Isolated) 2 Pin Terminal Block

Loading:

RS485 Max 32 Unit

Distance:

RS485 Length 1 Km.

Protocol:

MODBUS (ASCII, RTU) or Wisco ASCII

Support Software:

Node-RED, Citect, Wonderware, Lab View, iFix, Genesis, etc.

Serial Parameter

Baud Rate:

1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200

Data Bits:

7, 8

Stop Bits:

1, 2

Parity:

None, Even, Odd

Analog Input

Number of Channel:

9 Channels

Input Type:

Programmable Input

Thermocouple: R, S, K, E, J, T, B, N

RTD: PT100, PT1000, Cu10

Resistance: 0 to 100 Ω, 0 to 1 KΩ, 0 to 10 KΩ, 0 to 100 KΩ

Voltage: ± 0 to 125, ± 0 to 250, ± 0 to 500, ± 0 to 1000, ± 0 to 2000 mVDC

High Voltage: 0 to 5, 0 to 7.5, 0 to 10, 0 to 15, 0 to 30 VDC

Current: 4 to 20, ± 0 to 20, ± 0 to 40 mA

Input Impedance:

Voltage (mVDC): More Than 10 MΩ

High Voltage (VDC): Approx. 200 KΩ

Current (mA): Approx. 47 Ω

ADC Resolution:

16 Bits

Digital Input

Number of Channel:

8 Channels

Sensor Type:

Wet Contact or Dry Contact (Opto Isolated)

Wet Contact
(DI to COM):

ON: 10 to 30 VDC

OFF: <2.5 VDC

Dry Contact
(DI to GND):

ON: DI Short to GND

OFF: Open

Status Mode:

ON, OFF

Counter Mode:

Counter, Rate (RPM, Hz, L/min), Timer, Counter A + Counter B,

Counter A - Counter B, Direction, Preset/Reset, Run/Hold, Quadrature

Frequency Pulse:

Low: 0.01 Hz, High: 1 KHz

Minimum Pulse Width:

1 msec.

Digital Output

Number of Channel:

8 Channels

Output Type:

NPN Open Collector

Max. Current:

30 VDC @ 1 A

Power Requirements

Power Supply:

110 to 230 VAC

(12 to 35 VDC Optional)

Port USB:

4.5 to 5.5 VDC

Power Consumption

Operating:

12 VDC @ 160 mA (1.92 W)

5 VDC @ 250 mA (1.25 W)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W160 x H90 x D60 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information: Specify Power Supply
Example AI300/110-230VAC
Packagelist

Package Checklist

1. AI300

2. USB Cable
