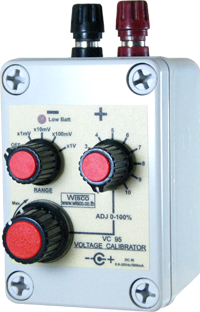

VC95: Voltage Calibrator

- Range 0 to 10mV, 0 to 100mV, 0 to1V, 0 to 10V

- Accuracy 0.1 %

- Portable

            Voltage Calibrator VC95 is Device for simulating DC Voltage Signal. Its purpose are testing or calibrating voltage for equipment such as Controller, PLC, Indicator, Recorder and etc. VC95 has 4 Output Range modes which are 0-10 mV, 0-100 mV, 1-0 V, and 0-10 V.  VC95 is power by small battery, easy to change and portable

Specifications

Analog Output

Number of channel:

1 Channel

Output type:

Voltage

Output range:

0 to 10, 0 to 100 mVDC

0 to 1, 0 to 10 VDC

Source Current:

40 mA

Accuracy:

± 0.1% of full range

Power Requirements

Power Supply:

AA Batteries (4 Pack)

External Power Supply:

6 to 30 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W90 x H65 x D55 mm.

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information:
Example VC95
Packagelist

Package Checklist

1. VC95

Downloads
Datasheet:
application/pdf iconVC95 Specification ENG.pdf
