TT95: Thermocouple Transmitter

- Programmable range

- Linearized output standard signal

- Isolation of input , output and power supply

- Cold junction compensation

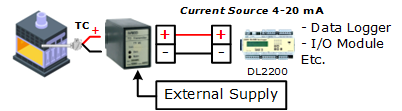

            The thermocouple's signal is linearized and cold-junction compensated to provide an isolated and linearized DC. voltage or current output. Typically the Thermocouple Transmitter TT95 interfaces with recording, monitering or controlling instruments.

Specifications

Thermocouple Input

Number of channel:

1 Channel

Input type:

Thermocouple

Input range:

Type J 0 to 800 °C

Type K 0 to 1200 °C

Type L 0 to 600 °C

Type R 0 to 1700 °C

Type S 0 to 1700 °C

Type T 0 to 400 °C

Cold junction compensation:

0-50 °C

Analog Output

Number of channel:

1 Channel

Output type:

Current, Voltage

Output range:

Current (4 to 20 mA)

Voltage (0 to 5, 1 to 5, 0 to 10 VDC)

Linearity:

< ± 0.2% of span

Output Load Resistance:

Current (max. 1000 Ω load)

Voltage (min 1000 Ω load)

Isolation voltage:

500 VAC (1 min.) between input, output, power supply

Power Requirements

Power Supply:

100,110, 220 VAC

24 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Connection:

Plug-in 11 pins socket

Warranty

Warranty Period:

5 year

Ordering
Ordering Information: Specify thermocouple type, input range, output, power supply
Example TT95/K/0-400 C/4-20 mA/220 VAC
Packagelist

Package Checklist

1. TT95
