TR37: Temperature Transmitter

- High Accuracy Temperature ± 0.1 °C

- Temperature Range 0 - 100 °C

- Output 2 Wire 4-20 mA (Loop Power)

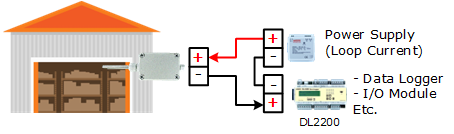

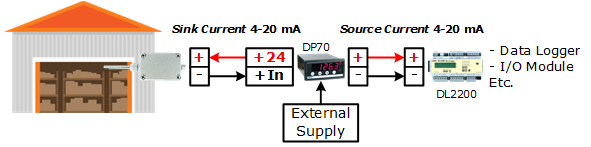

            Temperature Transmitter TR37 is device that converts temperature to electrical signal (4 – 20 mA) and send to signal receiver such as PLC, Recorder, Controller, indicator etc.

Specifications

USB Interface

Compliance:

USB 1.1/2.0

Connector:

USB Mini Type B

Speed:

12 Mbps (Full - Speed USB)

Class:

CDC

Temperature Input

Number of Channel:

1 Channel

Input Type:

Temperature

Input Range:

0 to 100 °C

Working Range:

0 to 60 °C

Response Time:

1 sec.

Accuracy:

± 0.4 °C (Max.), (-)10 to 85 °C

Analog Output

Number of Channel:

1 Channel

Output Type:

Current (2-Wire)

Output Range:

4 to 20 mA

Loop Powered:

12 to 35 VDC

Output Load Resistance:

Rload (Max.) = (Vsupply - 15)/0.02

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W75 x H125 x D50 mm.

Probe Length:

W80 mm.

Probe Diameter:

9.5 mm.

Warranty

Warranty Period:

1 Year
Ordering
Ordering Information:
Example TR37
Packagelist

Package Checklist

1. TR37

Downloads
Datasheet:
application/pdf iconTR37 Specification ENG.pdf
