SC20: Universal Signal Conditioner

- Programmable input

- Isolated input, output and power supply

- Universal Conversions

- 4-20mA, 0-10VDC, 0-5VDC transmitter output

- High accuracy (16 bit)

- Low cost

- Easy to install

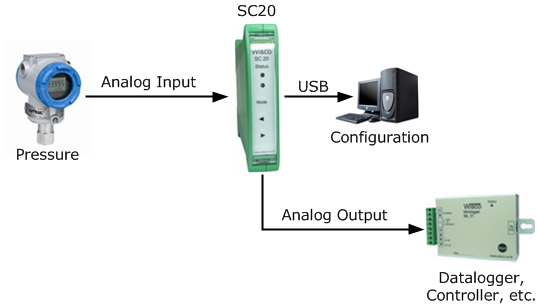

Universal Signal Conditioner SC20 A signal conditioner is a device that converts one type of electronic signal into a another type of signal. Its primary use is to convert a signal that may be difficult to read by conventional instrumentation into a more easily read format.

Specifications

USB Interface
Compliance:	USB 1.1/2.0
Connector:	USB Type Mini-A (Female)
Speed:	12 Mbps (Full-Speed USB)
Class:	CDC

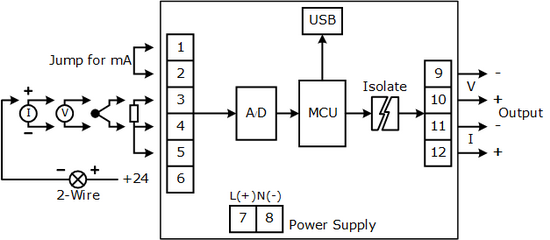

Analog Input
Number of Channel:	1 Channel
Input Type:	Programmable Input
Input Range:	Thermocouple: R, S, K, E, J, T, B
	RTD: Cu10, PT100, PT1000
	Resistance: 0 to 600 Ω, 0 to 1.2 KΩ, 0 to 4 KΩ
	Voltage (mVDC): 0 to 80, 0 to 150
	Voltage (VDC): 0 to 1, 0 to 5, 0 to 10, 0 to 15, 0 to 30
	Current: 4 to 20 mA, 0 to 20 mA, 0 to 40 mA
Loop Powered:	24 VDC (Source 2-Wire)
ADC Resolution:	16 Bits
Input Impedance:	Refer to *Table 1* (Download Datasheet SC20 Specification.pdf)

Analog Output
Number of Channel:	1 Channel
Output Type:	Voltage, Current (Programmable Output)
Output Range:	Voltage: 0 to 5, 1 to 5, 0 to 10 VDC
	Current: 4 to 20 mA
Output Load Resistance:	Current: Max. 1000 Ω Load
	Voltage: Min. 600 Ω Load (10 VDC)
Isolation Voltage:	500 VAC, Between Input Output and Power Supply

Power Requirements
Power Supply:	12 to 24 VDC
	(85 to 230 VAC Optional)

Power Consumption
Standby:	155 mA @ 12 VDC

Environmental Limits
Operating Temperature:	0 to 55 °C
Operating Humidity:	5 to 95 %RH
Storage Temperature:	0 to 70 °C

Physical Characteristics
Dimension:	W20 x H100 x D118 mm.
Mounting:	DIN Rail

Warranty
Warranty Period:	5 year

Ordering

Ordering Information:	Specify Power Supply
Example	SC20/12to24VDC

Packagelist

Package Checklist

1. SC20

2. USB Cable

Downloads

Datasheet:

SC20 Specification.pdf

Manual:

SC20 Manual V2.1.2.pdf

Driver:

USB Driver

Software:

SC20 Utility V2.1.2
