RC37: GSM Alarm

- 8 Alarm Digital inputs

- Programmable SMS Message

- Buffer 32 Alarm (Network Fail 15 Minute)

- 2 Digital Output Controlled by SMS

- Built-in 3G Modem (UMTS/HSDPA)

            GSM Alarm RC37 When the digital input change status RC37 will send SMS. The message of SMS and tel. number can be programmed by software. We can send SMS to control internal relays of RC37

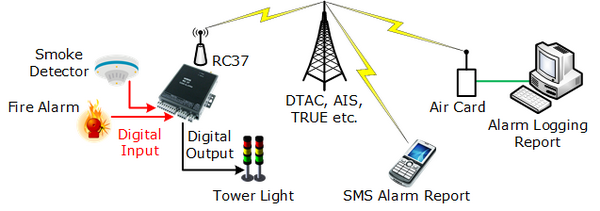

ตัวอย่างการต่อใช้งาน

Example of SMS Report

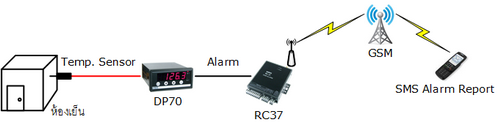

Examples of cold room alarm applications

Specifications

Cellular Interface

Frequency Bands:

FDD LTE: 800/850/900/1800/2100/2600 MHz

TDD LTE: 2300/2500/2600 MHz

WCDMA: 850/900/2100 MHz

GSM: 900/1800 MHz

LTE Version:

3GPP E-UTRA Release 10

Data Transfer (Max.):

FDD LTE: 150 Mbps (DL), 50 Mbps (UL)

TDD LTE: 130 Mbps (DL), 35 Mbps (UL)

DC-HSPA+: 42 Mbps (DL), 5.76 Mbps (UL)

UMTS: 384 Kbps (DL), 384 Kbps (UL)

TD-SCDMA: 4.2 Mbps (DL), 2.2 Mbps (UL)

EDGE: 236.8 Kbps (DL), 236.8 Kbps (UL)

GPRS: 85.6 Kbps (DL), 85.6 Kbps (UL)

Output power:

FDD LTE 1800: 3.21 W

TDD LTE 2600: 1.7 W

WCDMA 850: 2.69 W

GPRS 900: 2.1 W

EDGE 900: 1.66 W

USB Interface

Compliance:

USB 1.1/2.0

Connector:

USB Type B

Speed:

12 Mbps (Full-Speed USB)

Class:

CDC

Operating System:

Windows 98/SE, ME, NT, 2000, XP, Vista, 7, 8, 10 (32 and 64 Bit)

Digital Input

Number of channel:

8 Channels

Sensor Type:

Dry Contact

Dry Contact:

ON : Short to GND

OFF : Open

Relay Output

Number of Channel:

2 Channels

Relay Type:

N.O.

Contact Rating:

6 A @ 250 VAC

6 A @ 30 VDC

Power Requirements

Power Supply:

12 to 35 VDC

Consumption:

110 mA @ 24 VDC (2.7 VA)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W122 x H30 x D120 mm.

Mounting:

Screw

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information:
Example RC37
Packagelist

Package Checklist

1. RC37

2. Antenna

3. USB Cable

Downloads
Datasheet:
application/pdf iconRC37 Specification ENG.pdf
Manual:
application/pdf iconRC37 GSM ALARM Manual ENG V1.3.pdf
Driver:
USB Driver (32, 64 Bit)
Software:
RC37 GSM Alarm V1.5.1
