CT37: Current Transmitter

- Current Input 0 - 1, 0 - 5, 0 - 10 Aac

- Linearised

- Isolated Input to Output

- Compact DIN Rail Mount Enclosure

- High Accuracy

- Low Cost

- Easy to Install

Specifications

Analog Input

Number of Channel:

1 Channel

Input Type:

Current (AC)

Input Range:

0 to 1, 0 to 5, 0 to 10 Aac (Over-Range 120 % Continuously)

Input Loss:

1 VA Max.

Analog Output

Number of channel:

1 Channel

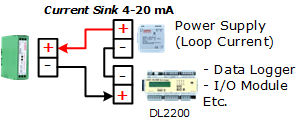

Output type:

Current (2 Wire)

Output range:

4 to 20 mA

Loop powered:

12 to 35 VDC

Accuracy:

< ± 0.2 % of span

Linearity:

< ± 0.2 % of span

Ambient drift:

< ± 0.02% / °C of span

Output Impedance:

Max. 600 Ω at 24 VDC (50 Ω/V above 12 VDC.)

Current Limitation:

< 26 mA

Isolation voltage:

500 VAC. input/output isolation (1min. test)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W22 x H80 x D85 mm.

Mounting:

DIN or EN Rail

Warranty

Warranty Period:

5 year
Ordering
Ordering Information:
Example CT37
Packagelist

Package Checklist

1. CT37

Downloads
Datasheet:
application/pdf iconCT37 Specification.pdf
