CS198: Current Loop Supply (Isolated 2 Channels)

- Power 2 wire transmitter

- 2 Isolated Channels Output

- Output 4-20 mA, 1-5 V, 0-10 V

- Din rail mounting

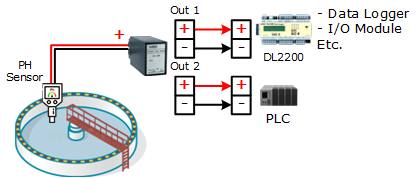

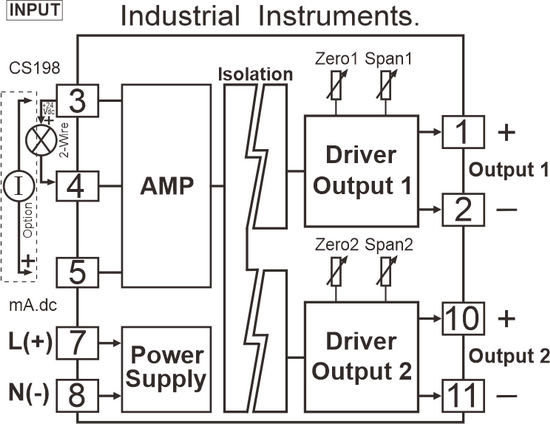

            The Current Loop Supply CS198 provides a floating DC supply for energizing a 2-wire transmitter and repeats the transmitter signal in another two floating circuits to drive loads.

Specifications

Analog Input

Number of channel:

1 Channel

Input type:

Current

Input range:

4 to 20 mA

Input impedance:

Max 20 Ω

Analog Output

Number of channel:

2 Channels (Isolated)

Output type:

Current, Voltage

Output range:

Voltage (1 to 5 VDC, 0 to 10 VDC)

Current (4 to 20 mA)

Linearity:

< ± 0.1% of span

Isolation voltage:

500 VAC, 1 min. between input, output, and power supply

Transmitter power supply:

36 mA @ 24 VDC

Power Requirements

Power Supply:

110, 220 VAC

24, 110, 125 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN Rail

Construction:

Plug-In

Wiring:

Screw terminals on base socket

Warranty

Warranty Period:

5 year

Ordering
Ordering Information: Specify Output1, Output2, Power supply
Example CS198/4-20 mA/1-5 VDC/220 VAC
Packagelist

Package Checklist

1. CS198
