CS195: Current Loop Supply (Isolate)

- Powers 2 wire transmitter

- Intrinsically saft without barriers or safety

  earth

- Output 4-20mA, 1-5V, 0-10V

- DIN rail mounting

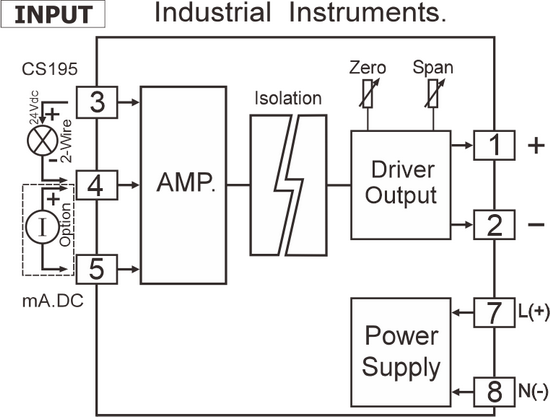

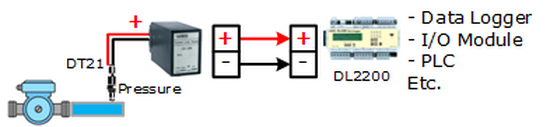

            The Current Loop Supply CS195 provides a floting DC supply for energizing a 2-wire transmitter in a hazardous area,and repeats the transmitter signal in another floating circuit to drive a safe-area load. The unit is intrinsically saft for connection to Zone 0,1 or 2 hazardous-area wiring, dose not require the use of safty barriers and dispenses with the need for isolation in transmitters used with earthed or poorly insulated sensors.

Specifications

Analog Input

Number of channel:

1 Channel

Input type:

Current

Input range:

4 to 20 mA

Input impedance:

Max 20 Ω

Analog Output

Number of Channel:

1 Channel

Output type:

Current, Voltage

Output range:

Voltage (1 to 5 VDC, 0 to 10 VDC)

Current (4 to 20 mA)

Linearity:

< ± 0.2 % of span

Isolation voltage:

500 VAC, 1 min. between input, output, and power supply

Transmitter power supply:

36 mA @ 24 VDC

Power Requirements

Power Supply:

110, 220 VAC

24, 110, 125 VDC Option

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W 50 x H70 x D130 mm

Mounting:

Wall or DIN rail

Construction:

plug - in

Wiring:

Screw terminals on base socket

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify Output, Power supply
Example CS195/4-20 mA/220 VAC
Packagelist

Package Checklist

1. CS195

Downloads
Datasheet:
application/pdf iconCS195 Specification ENG.pdf
